Best PCB Printed Circuit Board Types for Your Projects?

The world of PCB printed circuit boards is vast and diverse. Each type offers unique benefits for different projects. Renowned PCB expert, Dr. Jane Smith, once stated, "Choosing the right PCB printed circuit board can make or break your project's success." This insight resonates deeply within the electronics community.

When selecting a PCB printed circuit board, factors such as size, material, and layer count come into play. Some boards are ideal for simple projects, while others cater to complex electronics. Manufacturers often provide endless options, which can be overwhelming. It's crucial to evaluate the specific needs of your project.

However, despite the wealth of choice, many still struggle with making the right decision. Common pitfalls include underestimating complexity or overlooking material quality. Reflecting on past decisions can provide clarity. Navigating this landscape requires careful consideration and expertise. Each choice has consequences that shape the final product's performance.

Table of Contents [Hide]

1 Types of PCB Materials and Their Applications in Electronic Projects

2 Key Factors to Consider When Choosing PCB Types for Your Design

3 Comparative Analysis of Rigid, Flexible, and Rigid-Flex PCBs

4 Understanding Single-Sided, Double-Sided, and Multilayer PCBs

5 Trends and Innovations in PCB Design for Modern Electronics

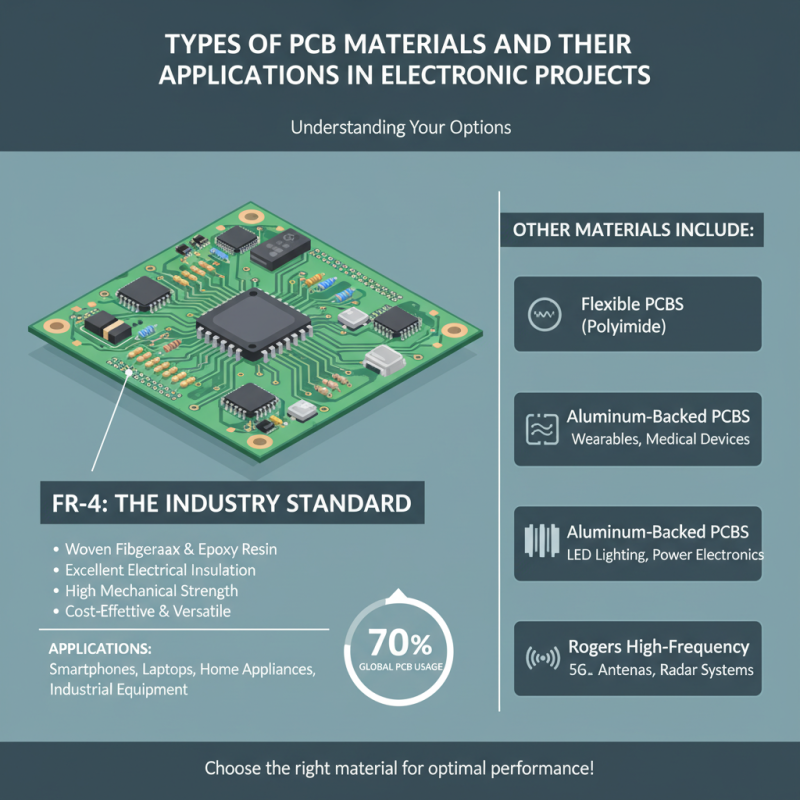

Types of PCB Materials and Their Applications in Electronic Projects

When selecting PCB materials for your projects, understanding their applications is crucial. FR-4 is the most widely used material. It consists of woven fiberglass and epoxy resin. This combination offers excellent insulation properties and mechanical strength. It’s ideal for most electronic devices, from smartphones to home appliances. Industry reports indicate that FR-4 accounts for over 70% of global PCB usage.

Another important type is aluminum PCBs. They are perfect for high-power applications. Aluminum offers better heat dissipation, which prevents overheating. These boards are commonly used in LED lighting and automotive electronics. However, they can be more expensive and difficult to work with compared to their FR-4 counterparts.

**Tip:** Always consider the specific requirements of your project before choosing a material. Heavy-duty applications may need aluminum, while general-purpose projects can utilize FR-4. **Tip:** Test smaller prototypes before committing to larger production runs. Evaluate the performance and watch for unexpected challenges. This approach allows for valuable adjustments.

Key Factors to Consider When Choosing PCB Types for Your Design

When choosing a PCB type for your design, several key factors come into play. The material is crucial; FR-4 remains the industry standard, but alternatives like polyimide or aluminum can offer superior performance. A report by IPC estimates that around 80% of PCBs utilize FR-4 due to its balance of cost and reliability. However, using the wrong material can lead to failures, especially in high-frequency applications.

Thickness also matters. Thinner boards can reduce weight but may compromise durability. The IPC states that over 30% of PCBs have a thickness of less than 1mm for portability in compact devices. This trend can create reliability issues under stress. Designers should weigh the pros and cons carefully, as a thin PCB mightnot handle mechanical stress well.

Layer count is another significant consideration. For complex designs, multi-layer boards provide more functionality but increase manufacturing costs. The average layer count for consumer electronics is about four to six, according to market analyses. More layers can lead to signal integrity issues if not designed properly. Therefore, it's essential to reflect on how many layers are actually needed and why.

Comparison of Different PCB Types for Project Design

Comparative Analysis of Rigid, Flexible, and Rigid-Flex PCBs

When choosing between PCB types, rigid, flexible, and rigid-flex options stand out. Rigid PCBs are the most common. They are ideal for stationary devices. Their design is stable and reliable. However, they lack adaptability. This can limit some projects.

Flexible PCBs provide a unique advantage. They can bend and twist, fitting snugly into various spaces. Their lightweight nature is also beneficial. Yet, they can be more expensive and may require precise manufacturing processes. This could lead to potential errors, which need consideration.

Rigid-flex PCBs combine the best of both worlds. They offer the reliability of rigid PCBs and the flexibility of flexible ones. These designs allow for versatile applications, even in tight environments. However, complexity can increase. This might make assembly harder and pricier. Choosing the right PCB type is crucial. Each has its strengths and weaknesses, demanding careful thought for each project’s unique needs.

Understanding Single-Sided, Double-Sided, and Multilayer PCBs

When exploring PCB types, understanding single-sided, double-sided, and multilayer boards is crucial. Single-sided PCBs are simple and cost-effective. They have components on one side and traces on the other. This type is ideal for basic electronics. However, they are limited in complexity and might not suit intricate designs.

Double-sided PCBs offer more versatility. They allow components on both sides, with traces interconnected through vias. This design enhances functionality but can complicate manufacturing processes. Mistakes can lead to overlapping traces and connectivity issues, demanding careful planning.

Multilayer PCBs are advanced. They stack multiple layers to accommodate complex circuits. This type maximizes space and minimizes interference. However, multilayer boards may increase costs and production challenges. They require precise alignment and careful testing. Balancing complexity and budget remains a key consideration.

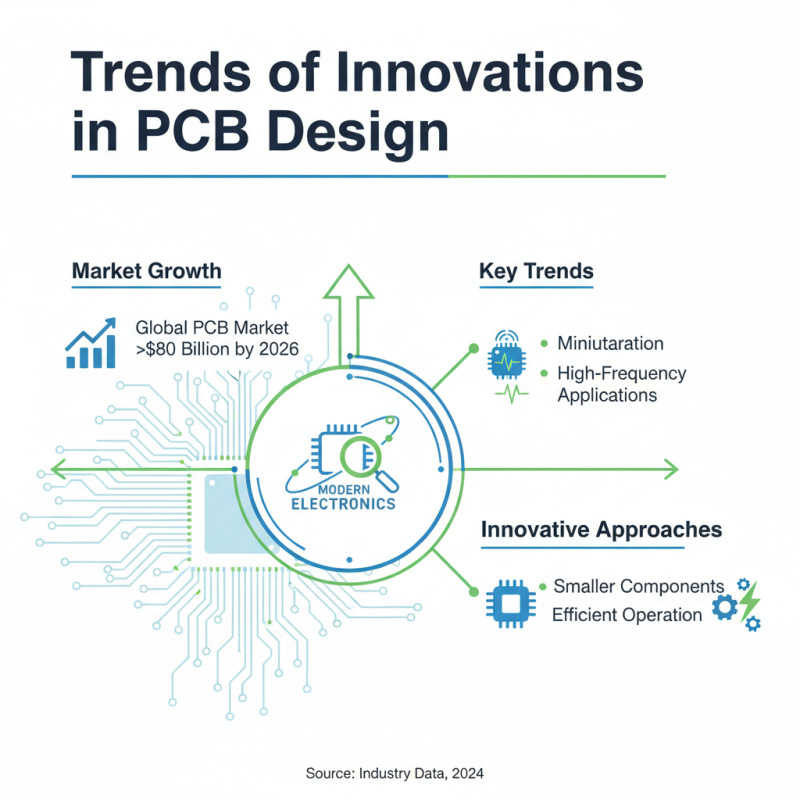

Trends and Innovations in PCB Design for Modern Electronics

The field of PCB design is rapidly evolving. Modern electronics require innovative approaches to meet demanding specifications. Recent data shows that the global PCB market is expected to exceed $80 billion by 2026. This growth drives trends in miniaturization and high-frequency applications. More devices need smaller components that can operate efficiently.

Innovation in materials, like flexible PCBs and high-density interconnects, gains traction. Flexible PCBs allow for compact designs without sacrificing functionality. A report indicates that flexible PCB demand will rise by 10% annually. This illustrates a shift in how devices are built, enabling more versatile applications.

Tip: Choose the right PCB type according to your application. Rigid, flexible, or rigid-flex PCBs offer different benefits. Assess your project’s requirements first. Sometimes, the most advanced designs can lead to unexpected complexity. Simplifying layouts can yield better overall performance.

Trend analysis suggests that sustainability is becoming a priority. Eco-friendly materials and processes are gaining attention. Consumers are increasingly focused on environmentally responsible electronics. With this in mind, embrace new technologies but remember: not every trend suits every project.
